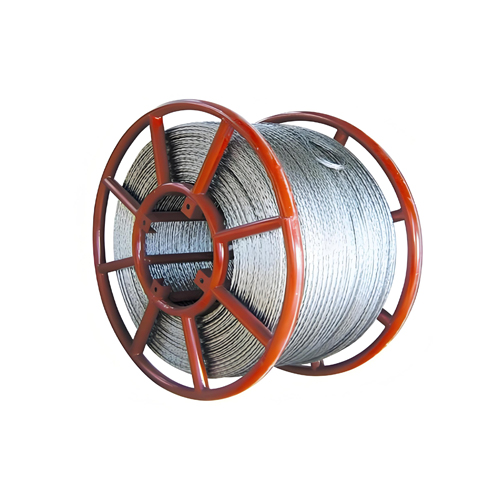

Anti-twisting Steel Rope
- Category： Transmission Line Tool
- Product description：this anti-twisting steel wire braided rope mainly used for stringing overhead transmission lines as pulling rope.also use for lifting and balancing in the coal wells and mines and docks.
Anti-twisting Steel Rope Specification
| Diameter | Structure | Breaking force (KN) | Weight(KG/M) |
| 7 |
Eight strands |
34.38 | 0.178 |
| 9 |
Eight strands |
53.90 | 0.305 |
| 11 |
Eight strands |
76.94 | 0.386 |
|
13 |
Eight strands |
105.04 | 0.552 |
| 15 |
Eight strands |
137.51 | 0.692 |
| 9 | Twelve strands | 51.57 | 0.250 |
| 11 |
Twelve strands |
80.8 | 0.458 |
| 13 |
Twelve strands |
115.4 | 0.579 |
| 15 |
Twelve strands |
157.55 | 0.828 |
| 18 |
Twelve strands |
206.27 | 1.038 |
| 20 |
Twelve strands |
260.3 | 1.331 |
| 23 |
Twelve strands |
320.82 | 1.557 |
| 25 |
Twelve strands |
387.83 | 1.882 |
| 21 | Eighteen | 173.1 | 0.870 |
| 24 |
Eighteen |
236.33 | 1.242 |
|
27 |
Eighteen |
309.40 | 1.557 |
| 30 |
Eighteen |
389.28 | 1.997 |
| 33 |
Eighteen |
481.22 | 2.457 |
| 36 |
Eighteen |
581.75 | 3.059 |
For other specification and length of the steel wire rope can be customized according to your request.
